Heating Elements UK

Here at Heating Elements UK, we have every length, power rating, voltage and conceivable shape of Incoloy 800 (also referred to as Alloy 800, Nicalloy), 8mm diameter ⌀ Heating Element you could possibly wish for. And truly outstanding levels of customer service and care that will make you want to add to the growing & glowing bank of Testimonials. Please feel free to add to them by clicking these links for Google, TrustPilot & FaceBook.

Heating Element Xray
Heating Element Xray



That is a promise.





Also, exceedingly proud to be Manufactured in the UK. Which means you can have stock items in a coupla days, & bespoke goods in a coupla weeks.

We have become overly used to cheap prices for goods manufactured elsewhere in the world. At HEUK, we are not cheap. We are Positively Proudly British. And generally, exceedingly cheerful. Training and paying skilled people, proper wages, paying for high quality raw materials (resistance coil wire, magnesium oxide, Incoloy 800 tubing and electrical connections), resulting in products that will exceed your expectations.

And that’s another promise.

Search for your specific requirements in the Shop here.

Or click Straight, U Bent, Formed.

Heating Elements UK is part of the Immersion Heaters UK Ltd group, encompassing this website plus, Brewery Heaters UK, and Flanged Immersion Heaters UK. All roads lead to Jamie Bristoll.

(Before ordering, please see ###Important Information###, below.)
  • Available Straight, U Bent (usually to 50mm fixing centres) or formed, see below.
  • As these are standards, stock moves fast, so call Jamie on 07897 246 779 to discuss your needs. And I’ll give you a discount, or free delivery – I like a chat! …And I don’t like losing 2%ish to the banks on card payments!
  • Stock straight lengths – 24″, 36″, 48″, 60″, 72″, 84″, 96″, 144″
  • Stock U Bent Lengths – 12″, 18″, 24″, 27″, 30″, 36″, 42″, 48″, 72″.
  • Stock Powers – 500w, 1000w, 2000w & 3000w.
  • Available bespoke, any power rating, voltage or length. Quantity discounts available.
  • Incoloy 800, “a superior stainless steel”, suitable for air, water or oil, at the appropriate watt densities.
  • 8mm diameter elements.
  • 4BA terminals by default 3.6mm ⌀, but call Jamie for spade, saddle or shell post terminals if required.
  • 1/4″ Compression Glands, fitted or bagged. Add to your order during the Checkout process. Sold in pairs, they appear as “You may be interested in…” when you view your Cart.

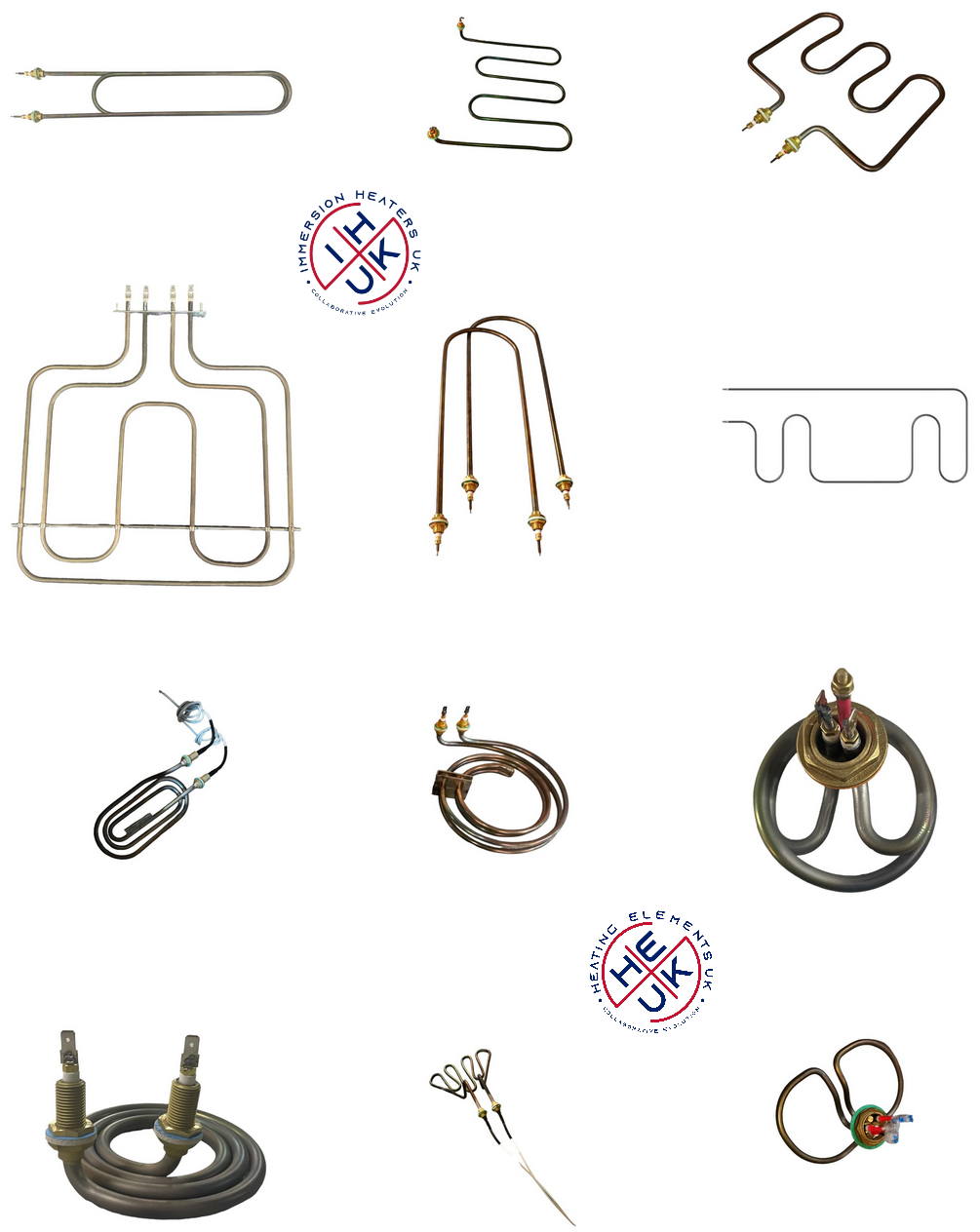

Heating Elements UK Available Bends

Heating Elements UK
available element forms
[click to enlarge

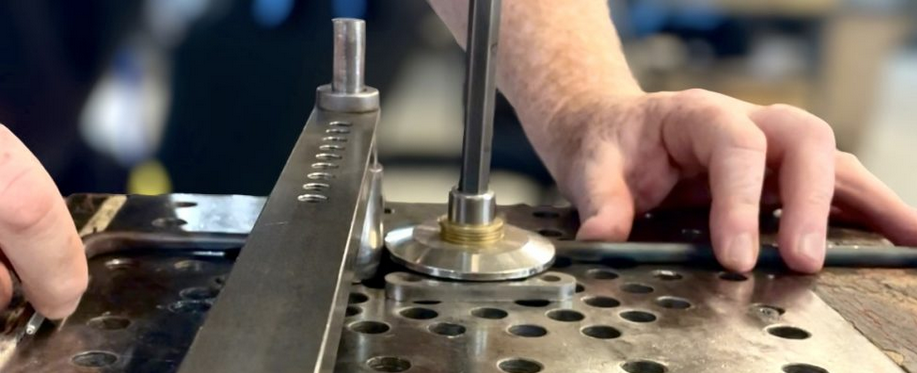

Elements can be shaped into the configurations displayed on the right. While some forming is accomplished using a smart machine, the majority is done by an even more ingenious individual, resembling Popeye. Consequently, the more intricate and involved the bends, the higher the cost due to the need for the spinach required to strengthen said SuperHero. Straight elements are the most economical, and you can shape them yourself if you’re feeling adventurous or if your specific requirements are unconventional. However, in my humble opinion, it’s preferable to entrust the work to the experts.

###Important Information###

The more flexibility you have in terms of power rating and length, the higher the likelihood of finding a readily available element in stock. Having items in stock streamlines the process, making it both quicker and easier. If you need STRAIGHT or NARROW U-BENT elements (i.e., <=50mm fixing centers), the lengths will need to be relatively close. However, if we can incorporate a W-shaped element (as shown in Figure 17 in the drawing on the right), it allows for variability in the “middle leg” based on the lengths available on the shelf. Similarly, being open to adjusting the power rating enhances our ability to swiftly and cost-effectively meet your requirements. For instance, if we don’t have enough 1000w elements at the moment, being willing to consider 1250w, 1333w, or perhaps 750w provides us with more options for immediately accommodating your needs.

If there is no flexibility in the specifications, we can custom-make elements to meet exact requirements. These elements undergo a process of filling, rolling, annealing, and overnight drying in an oven tailored to your specific needs. However, this customization is likely to extend the lead time by approximately one week. For larger quantities of elements, such as 30 or more, this won’t significantly impact the price. However, for manufacturing runs with lower volumes, the cost is expected to rise significantly. Less elements cost more.

It’s essential to be aware of these factors and consider them in advance of our conversation. My aim is to ensure your satisfaction, akin to the positive experiences shared by all the satisfied customers in our Testimonials. I look forward to adding your feedback to our growing and glowing repository.

Heating Elements UK – Useful Information.

This website not only features an online catalogue showcasing our essential product range but also provides helpful tips, advice, and guidance. Additionally, you’ll discover links to various resources aimed at simplifying your life, including our complimentary online heating calculation tools. These tools prove especially useful if you’re uncertain about the required power or time for your specific application. If you encounter any issues, feel free to reach out to Jamie at 07897 246 779.

ElementsOfHeating – Our Blog.

On our blog, ElementsOfHeating, started in 2014, you’ll find a rich source of pertinent and valuable information. This includes an explanation of what a heating element is. And my best attempt to explain the significance of watt density. Particularly when selecting the most suitable heating elements for water, oil, and breweries.

Generally, for water that is either naturally soft water, or softened using an appropriate method, it is acceptable to have a watt density of up to 80 w/in². Conversely, in regions like the UK where hard water is common, it is advisable to keep the watt density at or below 40 w/in². This precautionary measure is taken to prevent the accumulation of magnesium and calcium on the heating element, which could impede heat dissipation and lead to the buildup of debris, ultimately causing the element to fail.

When dealing with light oils such as cooking and seed oils, a watt density of 25 w/in² is deemed acceptable. However, for heavier industrial oils, a lower density of 12 w/in² is recommended. In simpler terms, ensuring that the heating element has sufficient space is critical to its proper functioning and longevity.

YouTube.

On our YouTube channel we have videos showing an explanation of what a heating element is

..as well as this 2 minute explanation of what an immersion heater is.

…and if you were after an Immersion Heater, click HERE to visit our sister site, Immersion Heaters UK LTD. All roads lead to Jamie.

Also our blog contains a full description and explanation of the component parts of a screwed immersion heater

Also available is an informational entry about the process we go through when designing immersion heaters generally.
